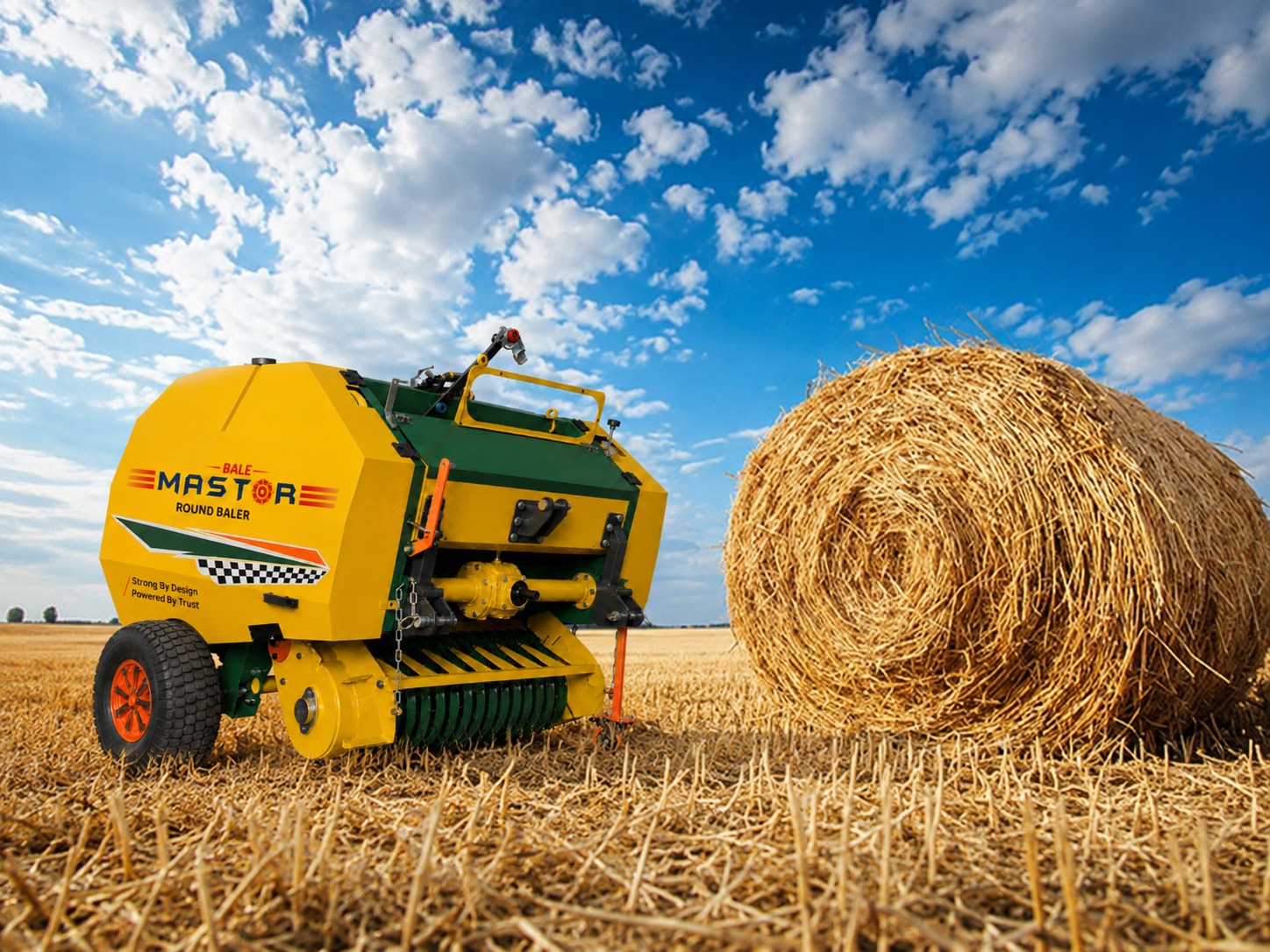

The Bale Master is a high-performance baling machine designed for efficient crop residue collection and bale formation. It produces compact round bales with a 90 cm length and 60 cm diameter, weighing approximately 28–32 kg each. Equipped with 12 rollers and 32 spocks, the machine ensures smooth operation and consistent bale density.

With a 100 cm pickup width and an output capacity of 40–60 bales per hour, it delivers excellent field productivity. The machine is compatible with tractors above 35 HP, operating at a 540 RPM PTO speed. Weighing approximately 750 kg, it uses jute twine binding for secure and eco-friendly bale tying.

BALE LENGTH 90 CM
BALE DIA METER 60 CM
BALE WEIGHT 28-32 Kg
BALE PICKUP WIDTH 100 CM
NUMBER OF ROLLERS 12
NUMBER OF SPOCKS 32
EFFICIENCY PER HOUR 40-60 BALES
TRACTOR POWER REQ. ABOVE 35 HP
PTO SPEED 540 RPM
MACHINE WEIGHT 750 Kg. (Approx)
BINDING TYPE JUTE TWINE
Bale Mastor

BALE LENGTH 90 CM
BALE DIA METER 60 CM
BALE WEIGHT 28-32 Kg
BALE PICKUP WIDTH 100 CM
NUMBER OF ROLLERS 12
NUMBER OF SPOCKS 32
EFFICIENCY PER HOUR 40-60 BALES
TRACTOR POWER REQ. ABOVE 35 HP
PTO SPEED 540 RPM
MACHINE WEIGHT 750 Kg. (Approx)
BINDING TYPE JUTE TWINE
