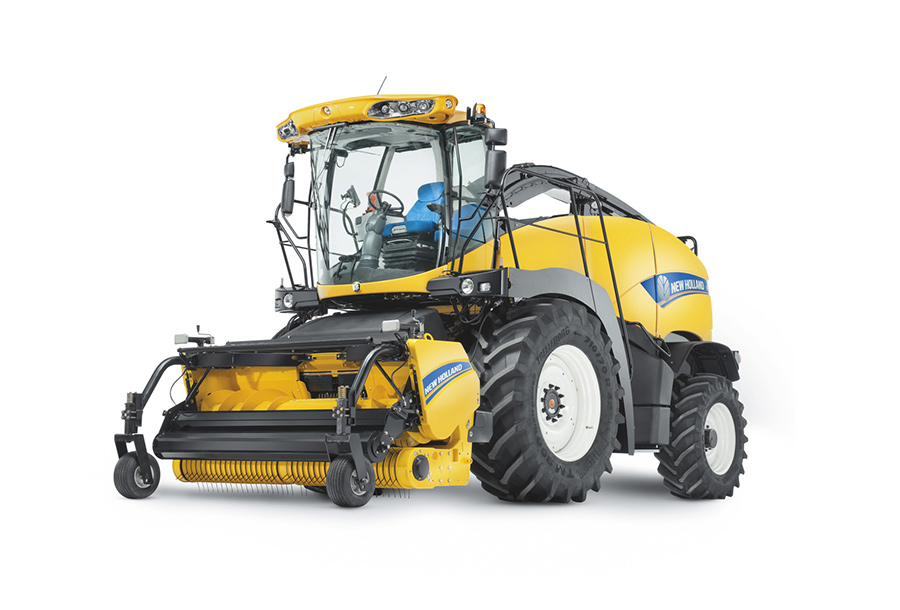

New Holland has been at the forefront of the forage harvesting sector for over half a century with a whole host
of pioneering industry firsts that have revolutionised the way you forage today. Owners will be spoilt for choice
in the five model range with powers ranging from 450hp(CV) right up to the mighty 824hp(CV) of the flagship
FR850 model. Industry leading chopping performance has been married to outstanding operator comfort in
MODELS | FR450 | FR500 | FR600 | FR700 | FR850 |
Engine | FPT Cursor 9* | FPT Cursor 13* | FPT Cursor 13 Turbo Compound* | Caterpillar C18 | FPT Vector 20* |
Engine configuration and number of cylinders | In-line 6 | In-line 6 | In-line 6 | In-line 6 | V8 |
Capacity (cm3 ) | 8700 | 12900 | 12900 | 18100 | 20100 |
Injection system | Common Rail | Unit injectors | Unit injectors | Unit injectors | Common Rail |
Compliant with engine emissions regulations | Tier 3 | Tier 3 | Tier 3 | Tier 3 | Tier 2 |
Rated power ISO TR14396 - ECE R120 @ 2100rpm [kW/hp(CV)] | 291/395 | 343/466 | 400/544 | 470/639 | 565/768 |
Max. power ISO TR14396 - ECE R120 @ 2000rpm [kW/hp(CV)] | 312/424 | 368/500 | 441/600 | 504/685 | 606/824 |
Torque @ 2100rpm ISO 14396 - ECE R120 (Nm) | 1497 | 1643 | 1941 | 2160 | 2633 |
Torque @ 1800rpm ISO 14396 - ECE R120 (Nm) | 1871 | 2091 | 2371 | 2698 | 3219 |
Max. torque ISO 14396 - ECE R120 @ 1500rpm (Nm) | 1820 | 2145 | 2590 | 2957 | 3584 |
Torque rise (2100 to 1500rpm) (%) | 30 | 38 | 33 | 37 | 36 |
Torque rise (2100 to 1800rpm) (%) | 25 | 27 | 22 | 25 | 22 |
Power Cruise™ II system | Standard | Standard | Standard | Standard | Standard |
Fuel consumption measuring and read-out on IntelliView™ IV monitor | Standard | Standard | Standard | Standard | Standard |
Air compressor | Optional | Optional | Optional | Standard | Standard |
Fuel tank | |||||
Diesel capacity (l) | 1040 | 1040 | 1220 | 1220 | 1220 |
Feeding | HydroLoc™ drive | HydroLoc™ drive | HydroLoc™ drive | HydroLoc™ drive | HydroLoc™drive |
Length of cut adjustment | Infinite | Infinite | Infinite | Infinite | Infinite |
Number of feed-rolls (n°) | 4 | 4 | 4 | 4 | 4 |
Feed opening width (mm) | 860mm (33.86 inch) | 860mm (33.86 inch) | 860mm (33.86 inch) | 860mm (33.86 inch) | 860mm (33.86 inch) |
MetaLoc™ metal detection with position indication | Standard |
Standard |
Standard |
Standard | Standard |
Dual Drive system (header hydrostatic drive) | Optional
|
Optional |
Optional
|
Optional |
Optional |
Cutterhead | |||||
Cutterhead cylinder type | V-shaped with 2 rows of knives | V-shaped with 2 rows of knives | V-shaped with 2 rows of knives | V-shaped with 2 rows of knives | V-shaped with 2 rows of knives |
Cutterhead frame width (mm) | 900mm | 900mm | 900mm | 900mm | 900mm |
Cutterhead cylinder width (mm) | 884mm | 884mm | 884mm | 884mm | 884mm |
Cutterhead diameter (max / min) (mm) | 710mm / 690mm | 710mm / 690mm | 710mm / 690mm | 710mm / 690mm | 710mm / 690mm |
Cutterhead speed at 2100 engine (rpm) | 1130 | 1130 | 1130 | 1130 | 1130 |
Cuts per minute (2 x 6 knives) (c/min) | 6780 | 6780 | 6780 | 6780 | 6780 |
Length of cut range (2 x 6 knives) (mm) | 8 - 44 | 8 - 44 | 8 - 44 | 8 - 44 | 8 - 44 |
Cuts per minute (2 x 8 knives) (c/min) | 9060 | 9060 | 9060 | 9060 | 9060 |
Length of cut range (2 x 8 knives) (mm) | 6 - 33 | 6 - 33 | 6 - 33 | 6 - 33 | 6 - 33 |
Cuts per minute (2 x 12 knives) (c/min) | 13600 | 13600 | 13600 | 13600 | 13600 |
Length of cut range (2 x 12 knives) (mm) | 4 - 22 | 4 - 22 | 4 - 22 | 4 - 22 | 4 - 22 |
Cuts per minute (2 x 16 knives) (c/min) | 18100 | 18100 | 18100 | 18100 | 18100 |
Length of cut range (2 x 16 knives) (mm) | 3 - 16 | 3 - 16 | 3 - 16 | 3 - 16 | 3 - 16 |
Cuts per minute (2 x 20 knives) (c/min) | 22600 | 22600 | 22600 | 22600 | 22600 |
Length of cut range (2 x 20 knives) (mm) | 2 - 13 | 2 - 13 | 2 - 13 | 2 - 13 | 2 - 13 |
Adjust-O-Matic™ shearbar setting | Standard | Standard | Standard | Standard | Standard |
Automatic knife sharpening system | Standard | Standard | Standard | Standard | Standard |
Automatic knife sharpening system with reverse drive | Optional | Optional | Optional | Optional | Optional |
Variflow™ system | |||||
Crop processor | |||||
Roll diameter (mm) | 200 / 250 | 200 / 250 | 250 | 250 | 250 |
Two-roll system with saw tooth profile (teeth) | 77 / 99 / 126 / 166 | 77 / 99 / 126 / 166 | 99 / 126 / 166 | 99 / 126 / 166 | 99 / 126 / 166 |
Chrome coated two-roll system with 99/126 teeth combination | – | Optional | Optional | Optional | Optional |
10% speed differential | Optional | Optional | – | – | – |
22% speed differential | Standard | Standard | Standard | Standard | Standard |
30% speed differential (only with 99/126 teeth combination) | – | Optional | Optional | Optional | Optional |
50% speed differential (whole crop) | Optional | Optional | Optional | Optional | Optional |
Roll clearance range (electro-hydraulic adjustment) (mm) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
Manual clearance control (optional 200mm rolls) | Optional | Optional | – | – | – |
Remote electro-hydraulic clearance control (250mm rolls) | Standard | Standard | Standard | Standard | Standard |
Blower | |||||
Blower rotor diameter (mm) | 525mm (20.67 inch) | 525mm (20.67 inch) | 525mm (20.67 inch) | 525mm (20.67 inch) | 525mm (20.67 inch) |
Blower rotor width (mm) | 750mm (29.53 inch) | 750mm (29.53 inch) | 750mm (29.53 inch) | 750mm (29.53 inch) | 750mm (29.53 inch) |
Blower speed at 2100 engine (rpm) | 2119 | 2119 | 2119 | 2119 | 2119 |
Spout | |||||
Spout maximum height (mm) | 6400 | 6400 | 6400 | 6400 | 6400 |
Rotation angle (°) | 210 | 210 | 210 | 210 | 210 |
Spout extension (10-row maize header) (mm) | 720 | 720 | 720 | 720 | 720 |
Spout extension (12-row maize header) (mm) | 1380 | 1380 | 1380 | 1380 | 1380 |
Automatic spout functions (home and work positions) | Standard | Standard | Standard |
Standard |
Standard |
Spout side collision protection | Standard | Standard | Standard | Standard | Standard |
Abrasive option | Optional | Optional | Optional | Optional | Optional |
Electrical | |||||
12 volt alternator Standard / Optional (Amps) | 185 | 185 | 185 | 185 | 185 |
Battery capacity (CCA / Ah) |
3 x 800 / 107 | 3 x 800 / 107 | 3 x 800 / 107 | 3 x 800 / 107 | 3 x 800 / 107 |
Transmission | |||||
Hydrostatic |
Standard |
Standard |
Standard |
Standard |
Standard |
Gearbox | 4-speed | 4-speed | 4-speed | 4-speed | 4-speed |
Remote gearshifting | Standard | Standard | Standard | Standard | Standard |
Differential lock | Standard | Standard | Standard | Standard | Standard |
Mechanical powered rear wheels |
Optional |
Optional |
Optional |
Optional |
Optional |
Maximum road speed @ 1400rpm (kph) | 40 | 40 | 40 | 40 | 40 |
Header control systems | |||||
Automatic stubble height control |
Standard |
Standard |
Standard |
Standard |
Standard |
Pressure compensation mode |
Standard |
Standard |
Standard |
Standard |
Standard |
Autofloat™ system |
Optional |
Optional |
Optional |
Optional |
Optional |
Mechanical lateral flotation | Standard | Standard | Standard | Standard | Standard |
Power Reverse™ hydraulic header reverser | Standard | Standard | Standard | Standard | Standard |
Hydraulic quick coupler (single location) | Standard | Standard | Standard | Standard | Standard |
Automatic header speed synchronisation to forward speed | Standard | Standard | Standard | Standard | Standard |
Cab glass area (m3 ) | 6.8 | 6.8 | 6.8 | 6.8 | 6.8 |
Cab category level - EN 15695 | 1 | 1 | 1 | 1 | 1 |
HID lighting pack | Optional | Optional | Optional | Optional | Optional |
Air-suspension seat | Standard | Standard | Standard | Standard | Standard |
Instructor’s seat | Standard | Standard | Standard | Standard | Standard |
IntelliView™ IV monitor with adjustable position | Standard | Standard | Standard | Standard | Standard |
3 viewing camera’s | Optional | Optional | Optional | Optional | Optional |
Manual air conditioning and heating | Standard | Standard | Standard | Standard | Standard |
Automatic climate control and coolbox | Optional | Optional | Optional | Optional | Optional |
MP3 Bluetooth radio (hands free phone calls) | Optional | Optional | Optional | Optional | Optional |
Automatic greasing system | Optional | Optional | Optional | Optional | Optional |
Optimum cab noise level - ISO 5131 (dB(A)) | 76 | 76 | 76 | 76 | 76 |
New Holland Precision Land Management systems | |||||
Guidance systems | |||||
Automatic row guidance system for maize headers | Optional | Optional | Optional | Optional | Optional |
IntelliFill™ system | Optional | Optional | Optional | Optional | Optional |
Precision farming | |||||
Optional additive tank (with adjustable flow) capacity (l) | 400 | 400 | 400 | 400 | 400 |
Moisture measuring | Optional | Optional | Optional | Optional | Optional |
Yield measuring and moisture measuring | Optional | Optional | Optional | Optional | Optional |
Full Precision farming package including: | |||||
Yield measuring and moisture measuring, DGPS yield mapping | Optional | Optional | Optional | Optional | Optional |
PLM desktop software and software support service | Optional | Optional | Optional | Optional | Optional |
Weight** (kg) |
12550 | 12750 | 12760 | 13060 | 13260 |
the form of the IntelliView™ IV monitor. Significantly improved capacity and productivity result from better crop
flow, which are all wrapped up in a sleek and tapered design which has New Holland written all over it.
